Name: Forge™ 5-in-1 Semi-automatic Welding Machine
Brand: Aroflit
SKU: 48437463318759
Availability: InStock

Experience the power and versatility of the MIG Semi-Automatic welding machine!

With its 5 in 1 capabilities, including Tig and mig welding, this machine is the perfect tool for all your welding needs.

Your all-in-one Solution For Welding Jobs!

This 5 in 1 Tig Mig Machine is perfect for welding aluminum and other metals with ease, thanks to its advanced inverter technology.

Versatile 5-in-1 Welding Machine

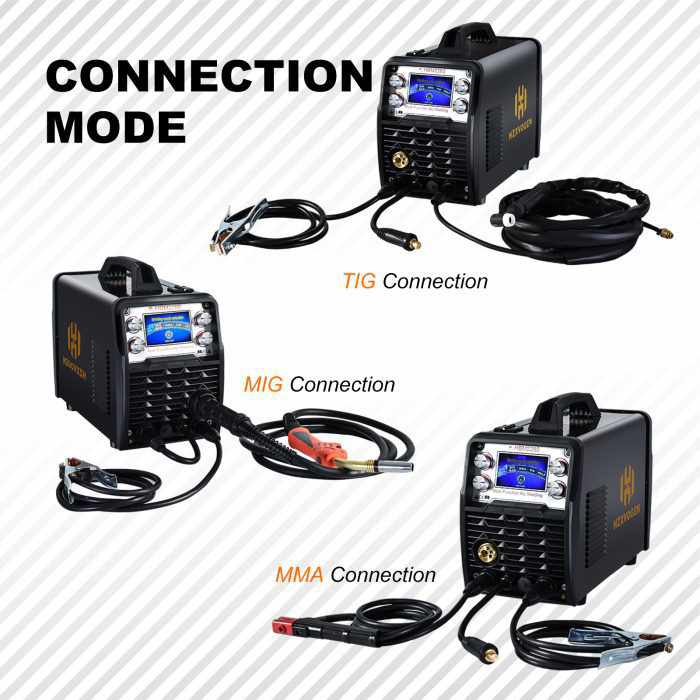

With this machine, you can switch between MIG, TIG, and stick welding modes to suit your specific welding needs. The semi-automatic feature ensures you get the job done quickly and efficiently, while the argon gas ensures clean welds every time.

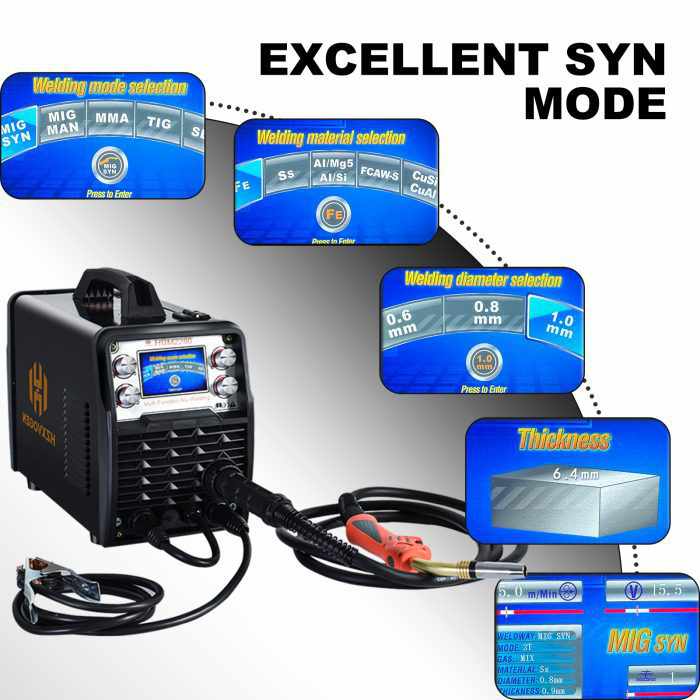

Multi-function mode to start your welder's journey.

MIG Function

MIX GAS can use 0.6/ 0.8/ 0.9/ 1.0mm flux wire. When using 0.6/ 0.8/ 0.9mm wire, it can weld 0.7 ~ 3.4mm thickness. When using 1.0mm wire, it can weld 1.2 ~ 6.4mm thickness.

TIG Function

Can use 1.6mm and 2.4mm tungsten.When using 1.6mm tungsten can weld 0.7 ~ 4.8 thickness, using 2.4mm tungsten can weld 1.2 ~ 6.4mm thickness.

MMA Function

Current 10 ~ 170 amp. Can weld 2.5/ 3.2/4.0mm electrode. Using 2.5/ 3.2mm rods, can weld 1.6 ~3.4mm thickness. Using 4.0mm rods, can weld 3.4mm ~ 8.0mm thickness.

Advanced IGBT

Maximise overload resistance, increase productivity, extend service life, and enhance stability.
Use a high frequency transformer made of copper amorphous material to save energy, resist high temperatures, extend working hours, and reduce loss.

The IGBT inverter technology

Offers high power in a portable, lightweight device. It is intended for use in factory upkeep, hardware, décor, and auto modification. This unit has the ability to perform LIFT TIG, ARC, and MIG (can weld aluminium).

PRODUCT DETAILS

SPECIFICATIONS

Inverter technology: IGBT
Rated input power (KW) - MIG: 5.7; TIG: 4.37; MMA: 6.3
Rated input current (A) - MIG: 36.0; TIG: 28.1; MMA: 40.5
Rated input apparent power (KVA) - MIG: 7.8; TIG: 6.21; MMA: 8.9
Welding current adjust range (A) - 10 ~ 200
Welding voltage adjust range (V) - 10 ~ 26
Duty cycle (40℃ 10min) - 25%, 200A; 60%, 150A; 100% 130A
No load voltage (V) - 50V (adjustable)
Power factor - MIG: 0.73; TIG: 0.70; MMA: 0.71
Efficiency(%) - ≥80%
Protection class - IP23
Insulation class - F

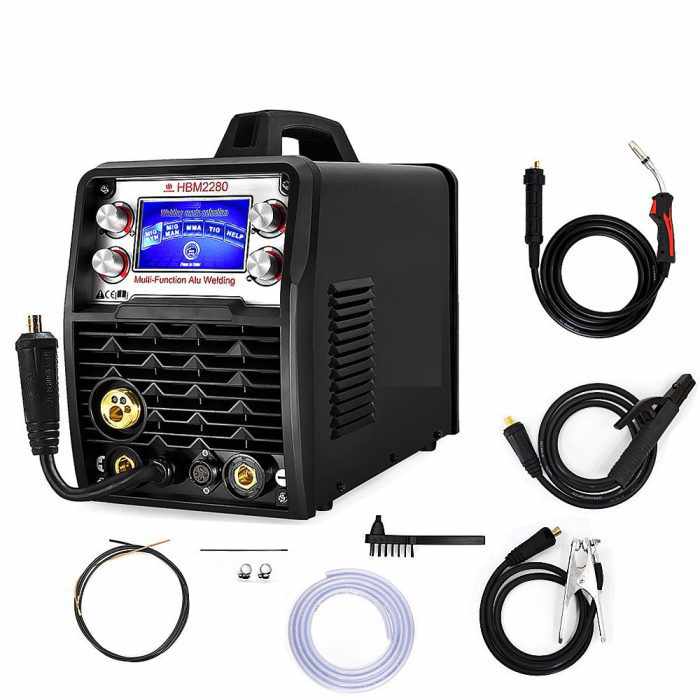

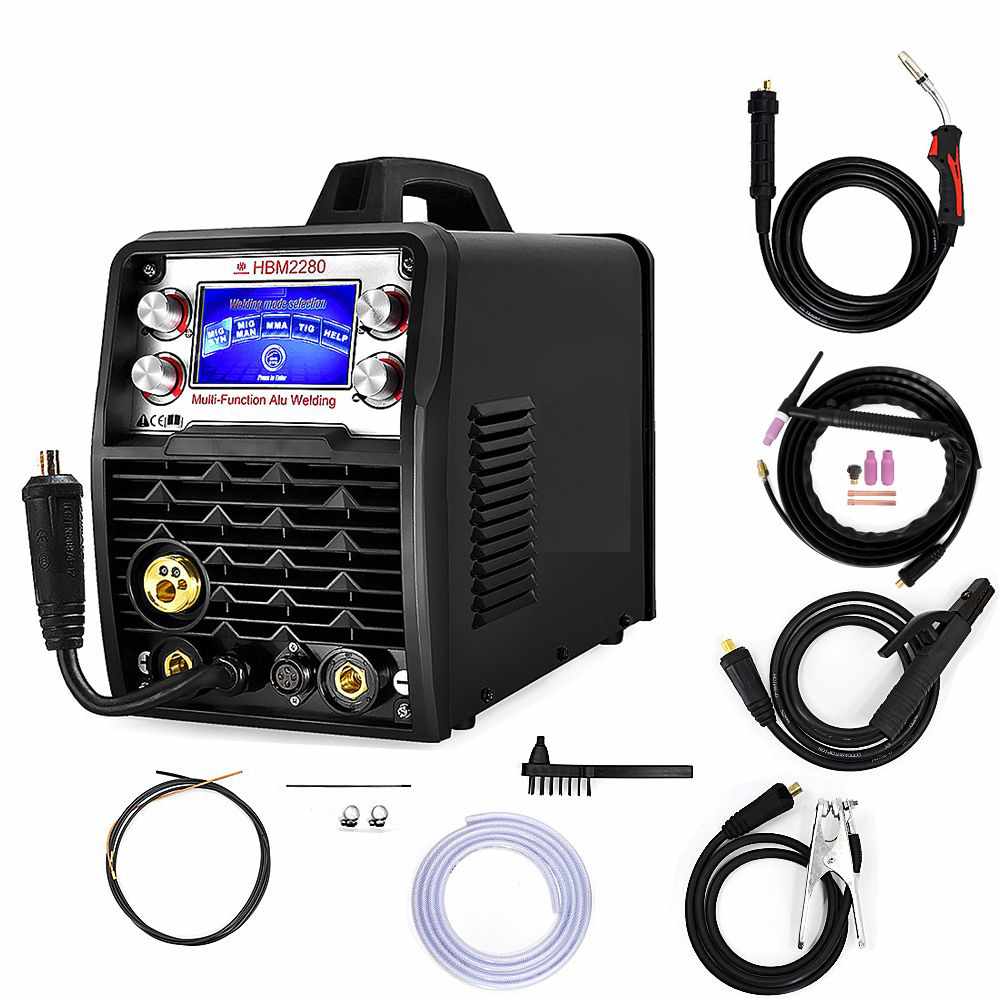

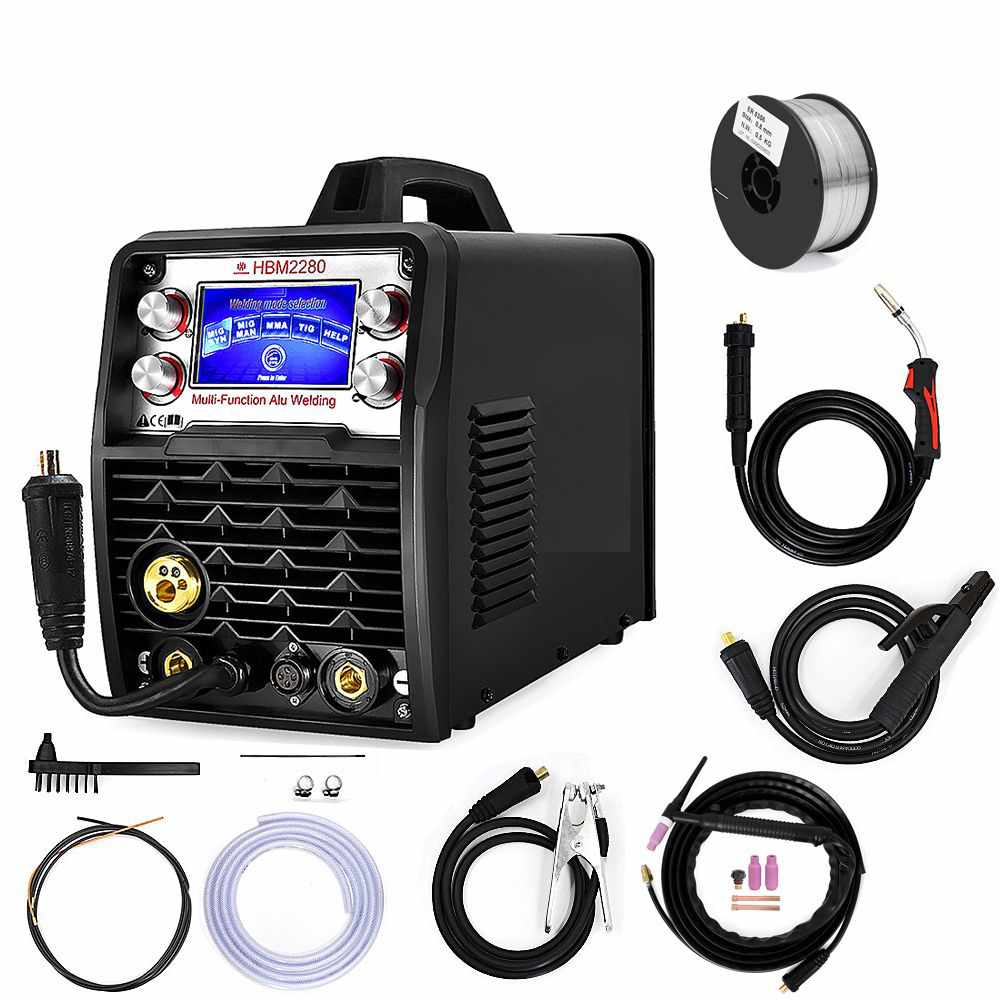

PACKAGE CONTENT

1X Mig Welder HBM2280
1X MB24 Mig torch
1X 300A Electrode holder
1X 200AEarth clamp
1X Gas tube
1X Pack of tips and nozzles
1X Manual
